Trailer Suspension Parts (BPW)

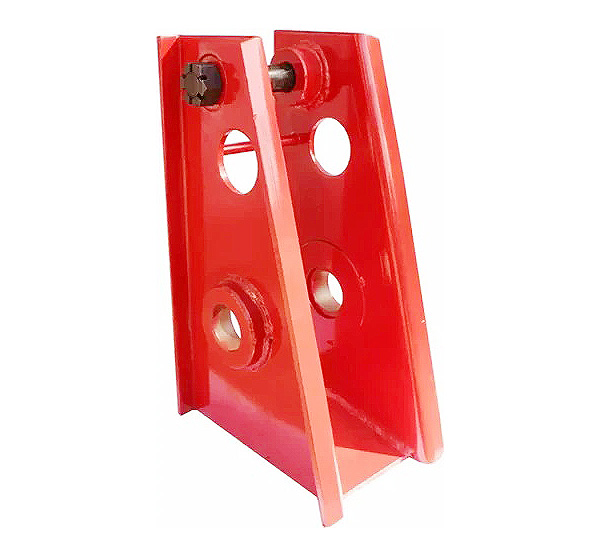

Center Hanger BPW
Technical Specification for Center Hanger BPW
| Surex Part No. | Description | Dimensions |
|---|---|---|
| STP-101 | Center Hanger with Base Plate for Pin 60mm (STD) | Thickness 8mm with 36mm Bolt |
| STP-101A | Center Hanger without Base Plate for Pin 60mm (STD) | Thickness 8mm with 36mm Bolt |
| STP-1018 | Center Hanger with Base Plate for Pin 60mm (Long) | Thickness 8mm with 36mm Bolt |
| STP-101C | Center Hanger without Base Plate for Pin 60mm (Long) | Thickness 8mm with 36mm Bolt |
| STP-101D | Center Hanger with Base Plate for Pin 70mm (STD) | Thickness 8mm with 36mm Bolt |
| STP-101E | Center Hanger without Base Plate for Pin 70mm (STD) | Thickness 8mm with 36mm Bolt |
| STP-101F | Center Hanger with Base Plate for Pin 70mm (Long) | Thickness 8mm with 36mm Bolt |
| STP-101G | Center Hanger without Base Plate for Pin 70mm (Long) | Thickness 8mm with 36mm Bolt |
| STP-101H | ||
| STP-102A | Center Hanger with Base Plate for Pin 60mm (STD) | Thickness 10mm with 36mm Bolt |
| STP-102B | Center Hanger without Base Plate for Pin 60mm (STD) | Thickness 10mm with 36mm Bolt |
| STP-102C | Center Hanger with Base Plate for Pin 60mm (Long) | Thickness 10mm with 36mm Bolt |
| STP-102D | Center Hanger without Base Plate for Pin 60mm (Long) | Thickness 10mm with 36mm Bolt |
| STP-102E | Center Hanger with Base Plate for Pin 70mm (STD) | Thickness 10mm with 36mm Bolt |
| STP-102F | Center Hanger without Base Plate for Pin 70mm (STD) | Thickness 10mm with 36mm Bolt |
| STP-102G | Center Hanger with Base Plate for Pin 70mm (Long) | Thickness 10mm with 36mm Bolt |
| STP-102H | Center Hanger without Base Plate for Pin 70mm (Long) | Thickness 10mm with 36mm Bolt |

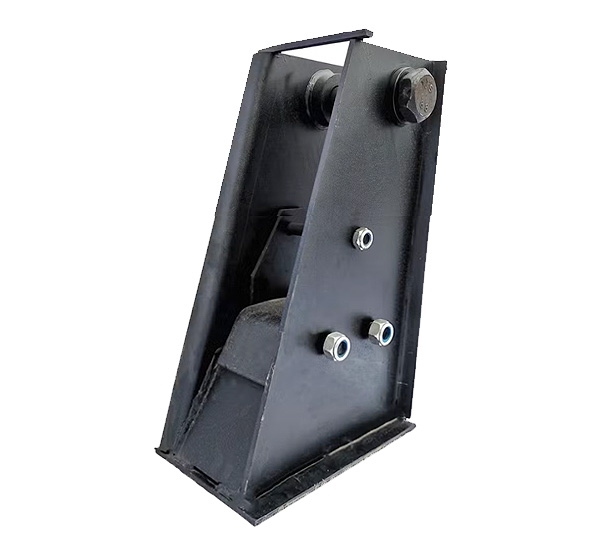

Front Hanger BPW
Technical Specification for Front Hanger BPW
| Surex Part No. | Description | Dimensions |
| STP-103 | Front Hanger BPW with Base Plate | Thickness 8mm with 36mm Bolt |
| STP-103A | Front Hanger BPW without Base Plate | Thickness 8mm with 36mm Bolt |

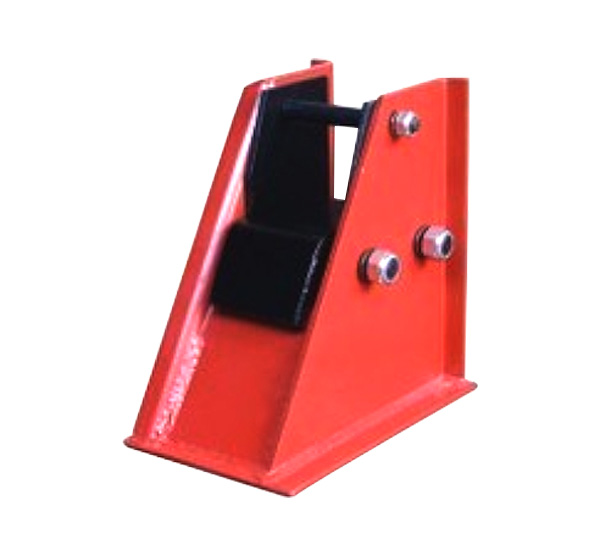

Rear Hanger BPW
Technical Specification for Rear Hanger BPW
| Surex Part No. | Description | Dimensions |
| STP-104 | Rear Hanger Assembly with Base Plate | Thickness 8mm with 36mm Bolt |
| STP-104A | Rear Hanger Assembly without Base Plate | Thickness 8mm with 36mm Bolt |

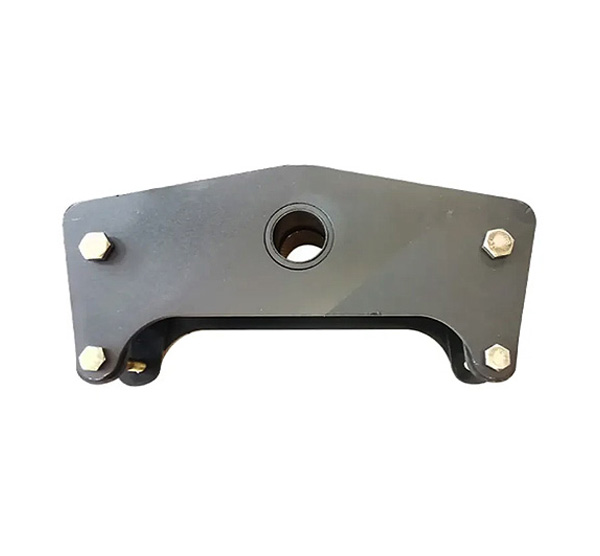

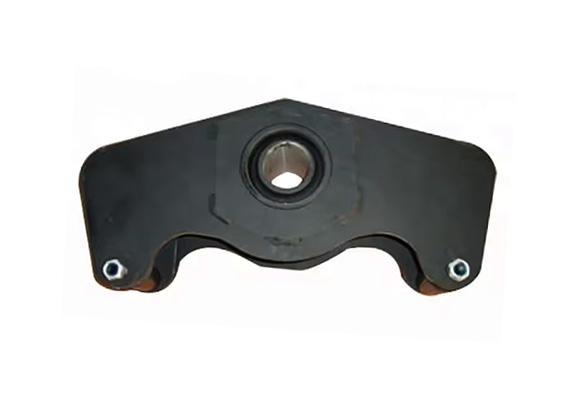

Equalizer BPW
Technical Specification for Equalizer BPW
| Sr. No. | Surex Part No. | Description | Dimensions |
| 01 | STP-105 | Equalizer Brass Bush with Skid Roller and Bolts | 70mm |
| 02 | STP-105A | Equalizer Rubber Bush with Skid Roller and Bolts | 60mm |

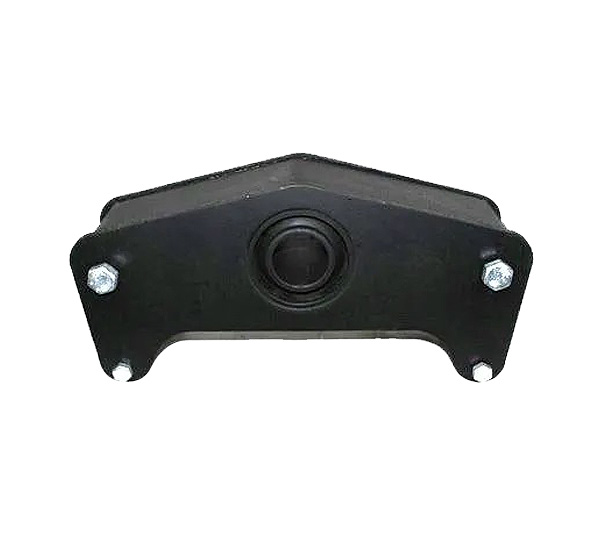

Equalizer BPW/Doll
Technical Specification for Equalizer BPW/Doll
| Sr. No. | Surex Part No. | Description | Dimensions |
| 01 | STP-106 | Equalizer Assembly with Rubber Bush and Bolts | 60mm (8mm) |
| 02 | STP-106A | Equalizer Assembly with Rubber Bush and Bolts | 60mm (10mm) |
Equalizer Gorika
Technical Specification for Equalizer Gorika
| Sr. No. | Surex Part No. | Description | Dimensions |
| 01 | STP-107 | Equalizer Assembly with Brass Bush and 2 Bolts | 70mm |
| 02 | STP-107A | Equalizer Assembly with Brass Bush and 2 Bolts | 60mm |
Equalizer Doll New Model
Technical Specification for Equalizer Doll New Model
| Sr. No. | Surex Part No. | Description | Dimensions |
| 01 | STP-108 | Equalizer Assembly with Rubber Bush and 2 Bolts | 18mm |
| 02 | STP-108A | Equalizer Assembly with Rubber Bush and 2 Bolts | 10mm |
Skid Roller Old /New Model
Technical Specification for Skid Roller Old /New Model
| Sr. No. | Surex Part No. | Description | Dimensions |
| 01 | STP-105B | Skid Roller Old Model | |
| 02 | STP-108B | Skid Roller New Model |
