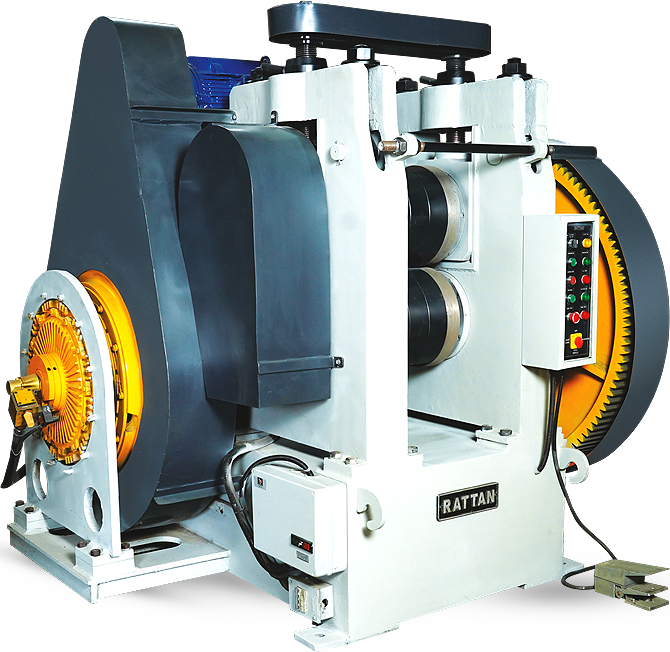

Roll Forge Reducer is required for providing exact & precise shapes to workpiece by passing them through two rolls having dies. It is widely utilized in metal fabricating industries for making various machine and architectural structures according to need. This forge reducer works by reducing cross-sectional area of feed metal in order to provide required shape. Roll Forge Reducer offered by us works with help of CNC controls assuring its user friendly nature.
Technical specification for Roll Forge Reducer
| Capacity In Tons | 10 | 20 | 30 | 50 | 75 | 100 | 150 | 200 | 250 |
| Table Size MM | 355×430 | 400×505 | 450×525 | 450 X 600 | 530 X 760 | 600 X 890 | 700 X 1000 | 750 X 1100 | 800X1200 |
| Distance Table To RAM | 240 | 254 | 280 | 300 | 350 | 375 | 430 | 450 | 450 |
| Stroke | 68 | 75 | 75 | 90 | 100 | 100 | 125 | 150 | 150 |
| Punch Hole | 28 | 32 | 32 | 32 | 38 | 38 | 45 | 63 | 63 |
| Stroke Per Minute | 90 | 80 | 70 | 60 | 45 | 45 | 40 | 35 | 35 |
| Bore In Table | 100 | 125 | 125 | 150 | 175 | 200 | 225 | 250 | 250 |
| Ram Adjustment | 28 | 45 | 45 | 45 | 45 | 50 | 50 | 50 | 50 |
| HP Required 1440 RPM | 2 | 2 | 3 | 5 | 5 | 75 | 10 | 15 | 20 |
| Pully Size | 125 | 150 | 150 | 150 | 150 | 150 | 175 | 200 | 225 |
Features:
- In comparison with the forging press in the extension of the molding property, the extension rate may be multiplied about 3 to 4 times and/or above.
- The natural molding is absolutely defect-free. The roller design makes the pre-shaping before forging feasible.
- Skillful operator is not required , and easy to operate , adjust, and install molding fixture.
- Molds are exchangeable, and in reverse motion this is substantially stable and easy to maintain.

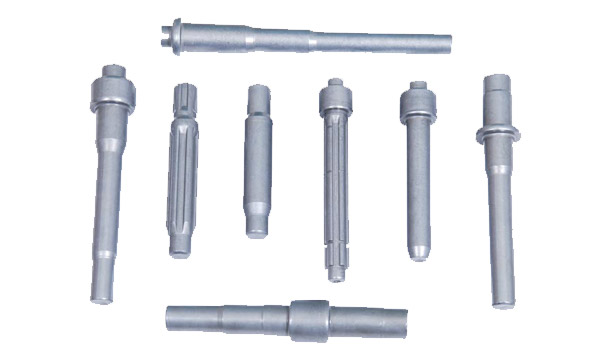

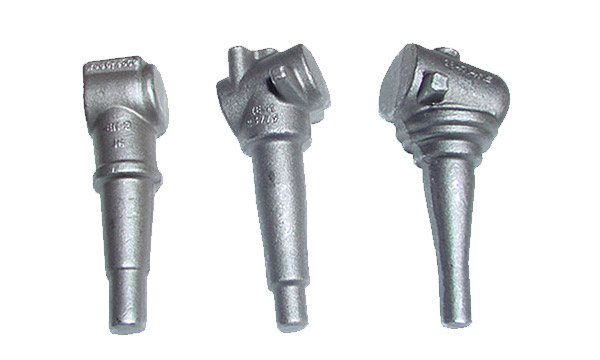

Application:
